RD55F-AD
Dimension Size : 55″
Bezel :1.8mm
Brightness(cd/m²) : 500cd/m²
Contrast Ratio : 1400:1

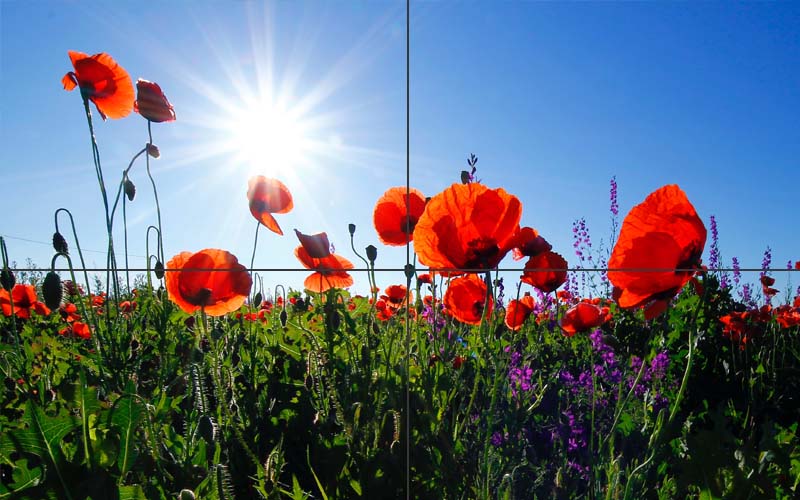

Redevue RD55F-AD is an extra narrow bezel LCD Video Wall Display with screen diagonals of 55″ with combined bezel-to-bezel at 1.8mm. It comes with DisplayPort for Daisy-Chain to form a video wall without external controller. The display comes with Full HD Resolution in LED Backlight technology. The brightness of the display reaches up to 500 nits and 1400:1 of contrast ratio. The display comes with numerous of features to guarantee the reliability for 24/7 Control Room environment usage.
Specifications
Panel Size                         55″
Outer Size                         1211.4 x 682.2 x 123 mm
Packing Size                       1448 x 253 x 935 mm
Gross weight                       75 kg
Viewing Area (L x H)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1209.6 x 680.4 mm
Contrast Ratio                      1400:1
Resolution                         1920 x 1080
Brightness                         500cd/m²
Combined Bezel For Two Panels     ≤ 1.8mm
Backlight                          LED
Viewing Angle                      178° / 178° (H, V)
Power                            170W
Response Time                    8ms
Using Life                          50,000(hrs)
Control Interface                  RS232
Spliced Quantity                   Any M line x Any N Row
Temperature / Humidity             0℃ ~ 50℃ / 10% ~ 90% (no condensation)
Installation                        Floor standing, wall mount, cabinet
Input Signal                         2 x HDMI in, 1 x DVI in, 1 x VGA in, 1 x DP in, 1 x Audio out, 1 x Audio In, 1 x DP out, 1 x RS232 in, 1 x RS232 out,                                                1 x AC100-240V
Accessories                         User Manual, Power cable, RJ45 Cable, IR receiver, Remote controller, HDMI/ DVI cable, USB-RS232 converter,                                                 RS232 to RJ45 converter.
