AVCIT IP Based KVM Solution - DSIII
AVCIT DSIII is compact KVM encoder/decoder, designed to transmit FHD or UHD video and HID over standard Gigabit Ethernet with low latency, low bit rates(4-20Mbps) and high image quality up to Chroma of 4:4:4. High-performance virtual KVM matrix can be configured over IP. It is a fully distributed and dynamic KVM over IP solutions; Benefiting from its no-server design, any single encoder/decoder’s bug will not affect the entire system, It will surely reduce the risk of system, and add much value on your design of mission critical command & control center.
AVCIT IP Based & KVM System provides all-in-one Command Center Solutions, which are combined functions of dynamic KVM, LED/DLP/LCD Wall Control and environment control. Compared to conventional command center solution by video wall matrix, there are following highlighting features:
- Realized 4:4:4 image chroma over 20 Mbps H.265 streams
- No standalone KVM server required
- No limit on the channels of computer and the connected monitor by one mouse + keyboard
Exclusive Features
● Access up to 8 computers/channels simultaneously, and have multi-viewing with multiple layout, on any monitor of your workspace.
● Realized 4:4:4 image chroma over 20 Mbps H.265 streams
● Support operation by both hot key and touch monitor.
● Audio decoding on a multi-viewing monitor automatically follow the mouse cursor.
● Support accessing most of the OS in the market, such as Window7/8/10, Mac, Linux, etc. Preview all source real-time at OSD, what you see is what you GET.
● Monitoring who have accessed to a server, and disconnect it with EXCLUSIVE permission.
● Drag/drop control what to display on other’s operator’s monitor.
● Drag/drop/resize any sources on all his connected monitor.
● Control the video wall signal and preset at any workspace if permit.
● Push any remotely accessed content to video wall by hot key seamlessly.
● Fast projecting any content from one monitor to a connected monitor.
● Cross display switching features, unlimited monitor connected by one mouse + keyboard.
● Video conference feature over the LAN by decoder.
● Operating & maintenance system with user-friendly and intuitively interface to monitor system’s health and manage all the devices.
● Soft KVM features on Window OS control UI.
● Support 8K signals input from workstations which is with multiple graphic card, perfect image sync.
● Built-in audio mixer up to 16 channel.
Features
● DSIII node is KVM encoder and decoder, for operator’s monitor at workspace or KVM sources, so that the operator can remotely access and control up to 8 computers/channels on one monitor simultaneously.
● Support accessing workstation/server with multiple graphic card.
● 4 permissions levels available for operators, EXCLUSIVE, SHARE, VIEW ONLY and PRIVATE.
● 4K/2K+UDP+USB+RS232/RS485/IR over CAT6e, up to 90m, plug & play.
● Native capability to decode 3rd party RTSP streams on video wall or workspace.

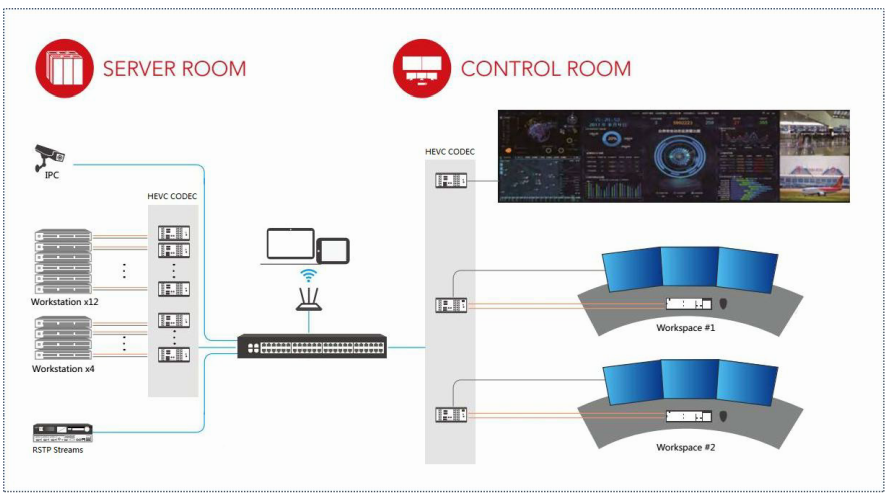

Example of System Topology
